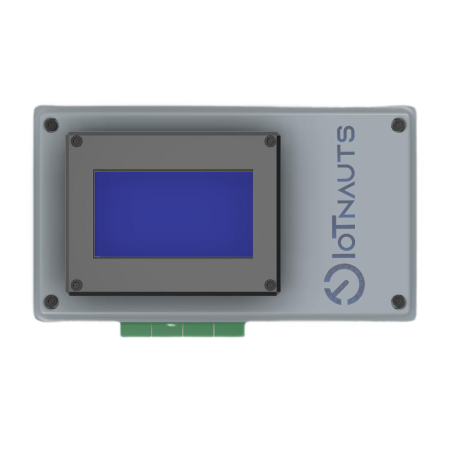

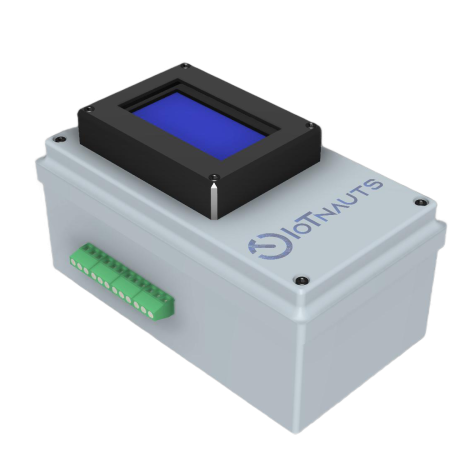

The cl-100 is an IoT-enabled multiple channels,
cloud-connected temperature data logger
designed for a wide range of monitoring
applications. It enables seamless data collection,
storage, and analysis across various
environments.
Suitable for industrial, agricultural and
environmental, and smart city applications, the
cl-100 integrates easily with existing systems to
provide real-time data insights and alerts
▪ Real-Time Temperature Monitoring: Continuously
measures and records temperature with high
precision sensors
▪ Cloud Integration: Offers easy setup and integration
with various cloud platforms for data
storage, analysis, and visualization
▪ Wireless Connectivity: Equipped with Wi-Fi
▪ Long Battery Life: Optimized power usage for
extended battery backup during power outages.
▪ Custom Alerts and Notifications: Configurable
thresholds for temperature alerts via email
▪ Easy Installation: Compact and robust design for easy
deployment in indoor and outdoor settings
▪ Platform user management: Multi-level access
controls for team collaboration
Applications
▪ Industrial Process Monitoring
▪ Food and Beverage Industry
▪ Pharmaceutical Storage
▪ Agricultural and Environmental Research
▪ HVAC System Monitoring
| Component | Specification |
|---|---|
| Temperature Measurement Range | -80°C to 200°C (-112°F to 392°F) |
| Number of channels | 2 |
| Sensor type | Temperature |
| Input signal | Thermal resistance → PT100 |
| Alarm type | High and lower limit alarms, each channel has 4 modes |
| Power supply | External power source (5V DC) |
| Backup Power source | Rechargeable, NCR, 3.7V Li-Ion, 3450 mAh (3c) |
| Backup duration | 8 hours (approx.) |
| Logging Interval | Customizable, from 1 minute to 4 hours |
| Local Buffer memory | 16 MB Flash memory, can store up to 1 week of data at 15-minute |
| Connectivity | Wi-Fi 802.11 b/g |
| Protocols | MQTT v3.1.1 |
| Dimensions | 175mm X 100mm X 80mm |
| Operational Temperature | -10°C to 50°C (14°F to 122°F) |
| Accuracy | ±0.5°C (±0.9°F) |
| Resolution | 0.1°C (0.18°F) |
| Mounting | DIN Rail mount |
| Weight | 650g |
| Working environment humidity | < 90%R.H (No condensation) |
| Storage environment temperature | 0°C ~ 50°C |
| Storage environment humidity | < 85%R.H (No condensation) |
